Sterile tank

Mobile processing equipment for vaccine production

Our small and medium-sized sterile mixing tanks have been used by national and overseas pharmaceutical companies for decades. Our sterile tanks are used by renowned, leading pharmaceutical companies, producers of generic medicines and subcontractors. Our sterile tanks are easy to clean, have a compact design and feature innovative engineering. As an established supplier for the pharmaceuticals industry, we have numerous references when it comes to tanks for stirring and mixing sterile products.
Process tank for sterile production

Articles in the range Sterile tank

Biotechnology Chemical industry Pharmaceutical

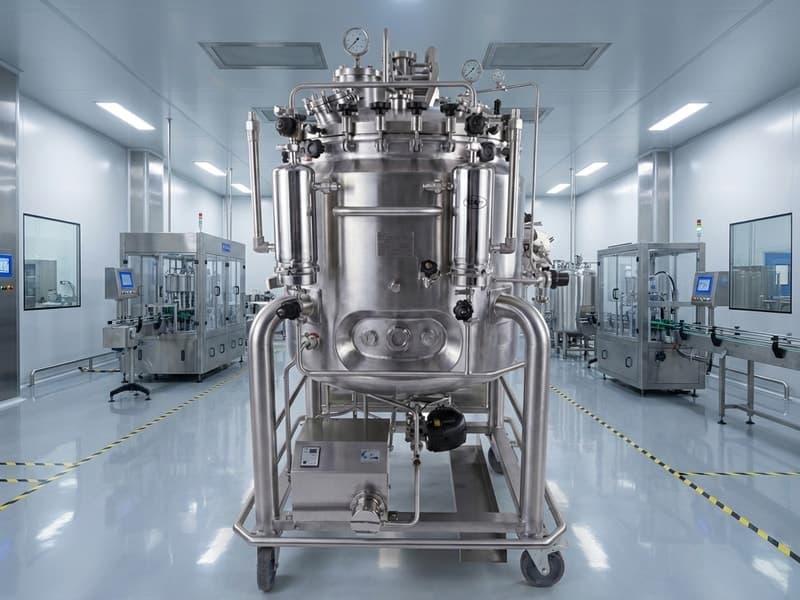

Process tank for sterile production

Pharmaceutical process tank for the sterile production of serum pursuant to PED 2014/68/EU cat. 4/module G, ATEX Directive 2014/34/EU and MD 2006/42/EU.
Top section as pressure dome cover with welded conical nozzle. Torispherical base design. The tank is equipped with a control system, analysis technology and filter. The tank is equipped with a heating/cooling jacket and insulation cover.
Equipment also includes:
  • Magnetic stirrer for a viscosity of 250 mPas
  • Filter for sterile filtration
  • pH measurement
  • O² measurement
  • Metaglas sight glass
  • LED sight glass lights
  • D-ended sight glass in casing
  • Rupture disc / safety valve
  • Product tubes
  • CIP-compatible sampling and outlet valve
  • CIP cleaning nozzle
  • ATEX design
  • Control cabinet in line with ATEX
AREA OF APPLICATION:
Industry: Pharmaceutical
Cytostatic drugs, serum production
SIZE:
10l – 800l
OPERATING DATA:
Tank product chamber:
p = -0,5 / +3,5 bar,
t = -10 / +150 °C
Double wall:
p = -0,5 / +4,5 bar,
t = -10 / +150 °C
MATERIAL:
Parts in contact with product 1.4539 , Delta ferrite <1%, with APZ 3.2/3.1 AD 2000, Ra <0.8µm
Biotechnology Cosmetics industry

CIP tanks with insulating material

Pharmaceutical mixing and process tank for CIP liquids pursuant to PED 2014/68/EU based on module G.
Upper section with folding dome pressure cover and welded conical nozzle. Torispherical base design.

The tank is equipped with a heating/cooling jacket and insulation cover.

Equipment also includes:
  • Magnetic stirrer as a bottom agitator for a viscosity of 100 mPas
  • Metaglas sight glass
  • LED sight glass lights
  • Rupture disc / safety valve
  • Product tubes
  • CIP cleaning nozzle
AREA OF APPLICATION:
Industry: pharmaceutical, food industry
Product: Cleaning liquids, demineralised water
SIZE:
500 l – 4.000 l
OPERATING DATA:
Tank product chamber:
p = -1 / +3 bar,
t = -10 / +150 °C
Double wall:
p = -1 / +3,5 bar,
t = -10 / +150 °C
MATERIAL:
Parts in contact with product 1.4404/ 1.4435/ 316L , with APZ 3.1 AD 2000, Ra <0.5µm
Chemical industry Pharmaceutical

800 l sterile tank with load cells

Item-Nr.: n.N.
Pharmaceutical mixing and processing tank for the sterile production of serum. Conformity pursuant to PED 2014/68/EU Cat. 4/Module G and MD 2006/42/EU.
Top section as pressure dome cover with welded conical TC nozzle. Torispherical base design. The tank is equipped with a control system, analysis and weighing technology. The tank is equipped with a heating/cooling jacket and insulation cover.
Equipment also includes:
  • Magnetic stirrer for a viscosity of 250 mPas
  • pH measurement
  • O² measurement
  • Metaglas sight glass
  • LED sight glass lights
  • D-ended sight glass in casing
  • Rupture disc / safety valve
  • Product tubes
  • CIP-compatible sampling and outlet valve
  • CIP cleaning nozzle
  • Load cells
  • IRIS monitoring
AREA OF APPLICATION:
Industry: Pharmaceutical
Product: Vaccine, serum production
SIZE:
10 l – 1.000 l
OPERATING DATA:
Tank product chamber:
p = -1 / +3 bar,
t = -10 / +150 °C
Double wall:
p = -1 / +4 bar,
t = -10 / +150 °C
MATERIAL:
Product wetted parts 1.4435, Delta Ferrite <3%, with APZ 3.1 AD 2000, Ra <0,3µm
