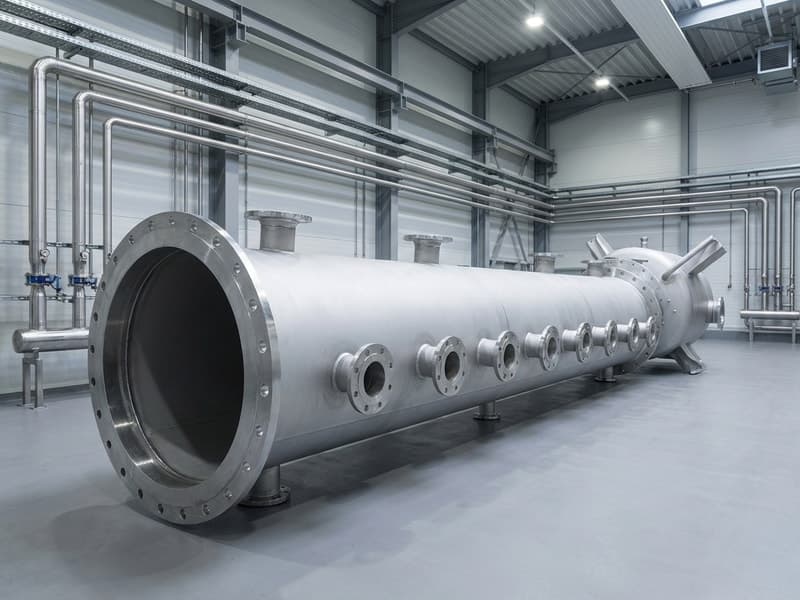

Process tanks

Stirring, mixing and process tanks for liquid, solid and semi-solid dosage forms

Our process tanks set standards when it comes to the safety, purity and reproducibility of pharmaceutical processes. EST process tanks are used by renowned pharmaceutical companies and smaller specialists of niche products to manufacture tablets, serums, pastes and liquids. Optimised for various stirring tasks, with sensors, weighing technology, heating, lifting, drive and containment systems or our innovative wireless IRIS monitoring system, our process tanks are used for a wide variety of dosage forms
Process tank for sterile production

Articles in the range Process tanks

Biotechnology Chemical industry Pharmaceutical

Process tank for sterile production

Pharmaceutical process tank for the sterile production of serum pursuant to PED 2014/68/EU cat. 4/module G, ATEX Directive 2014/34/EU and MD 2006/42/EU.
Top section as pressure dome cover with welded conical nozzle. Torispherical base design. The tank is equipped with a control system, analysis technology and filter. The tank is equipped with a heating/cooling jacket and insulation cover.
Equipment also includes:
  • Magnetic stirrer for a viscosity of 250 mPas
  • Filter for sterile filtration
  • pH measurement
  • O² measurement
  • Metaglas sight glass
  • LED sight glass lights
  • D-ended sight glass in casing
  • Rupture disc / safety valve
  • Product tubes
  • CIP-compatible sampling and outlet valve
  • CIP cleaning nozzle
  • ATEX design
  • Control cabinet in line with ATEX
AREA OF APPLICATION:
Industry: Pharmaceutical
Cytostatic drugs, serum production
SIZE:
10l – 800l
OPERATING DATA:
Tank product chamber:
p = -0,5 / +3,5 bar,
t = -10 / +150 °C
Double wall:
p = -0,5 / +4,5 bar,
t = -10 / +150 °C
MATERIAL:
Parts in contact with product 1.4539 , Delta ferrite <1%, with APZ 3.2/3.1 AD 2000, Ra <0.8µm
Biotechnology Cosmetics industry

CIP tanks with insulating material

Pharmaceutical mixing and process tank for CIP liquids pursuant to PED 2014/68/EU based on module G.
Upper section with folding dome pressure cover and welded conical nozzle. Torispherical base design.

The tank is equipped with a heating/cooling jacket and insulation cover.

Equipment also includes:
  • Magnetic stirrer as a bottom agitator for a viscosity of 100 mPas
  • Metaglas sight glass
  • LED sight glass lights
  • Rupture disc / safety valve
  • Product tubes
  • CIP cleaning nozzle
AREA OF APPLICATION:
Industry: pharmaceutical, food industry
Product: Cleaning liquids, demineralised water
SIZE:
500 l – 4.000 l
OPERATING DATA:
Tank product chamber:
p = -1 / +3 bar,
t = -10 / +150 °C
Double wall:
p = -1 / +3,5 bar,
t = -10 / +150 °C
MATERIAL:
Parts in contact with product 1.4404/ 1.4435/ 316L , with APZ 3.1 AD 2000, Ra <0.5µm
Cosmetics industry Food industry Pharmaceutical

Stirring tank with angled turbine blade and protective grille

Agitator vessel with inclined blade agitator and mesh guard grille.

Detail view
Pharmaceutical process and filling tank for pharmaceutical tablet production in line with good engineering practice. Upper section with folding dome pressure cover and welded conical nozzle. Torispherical base design. The tank is equipped with a heating/cooling jacket and insulation cover.

Equipment also includes:
  • Top propeller for a viscosity of 500 mPas
  • CIP cleaning nozzle
  • Bottom valve
AREA OF APPLICATION:
Industry: pharmaceutical, food industry
Product: Tablet base
SIZE:
100 l – 800 l
OPERATING DATA:
Tank product chamber:
p = depressurised
t = -10 / +130 °C
Double wall:
p = -1 / +3,5 bar,
t = -10 / +130 °C
MATERIAL:
Parts in contact with product 1.4404/ 1.4435/ 316L , with APZ 3.1 AD 2000, Ra <0.85µm
Cosmetics industry Pharmaceutical

120l ATEX stirring tank with control cabinet

Pharmaceutical process tank for coating liquids pursuant to PED 2014/68/EU module G, ATEX Directive 2014/34/EU and MD 2006/42/EU.
Top section as pressure dome cover with welded conical nozzle. Conical base design. The tank is characterised by its low residual stirring volume. This is approx. 1.0l.

The tank is equipped with a heating/cooling jacket and insulation cover.

Equipment also includes:
  • ATEX propeller for a viscosity of 250 mPas
  • Metaglas sight glass
  • LED sight glass lights
  • Rupture disc / safety valve
  • Product tubes
  • CIP cleaning nozzle
  • ATEX design
AREA OF APPLICATION:
Industry: Pharmaceutical
Product: Coating liquids, spraying liquids
SIZE:
10 l – 500 l
OPERATING DATA:
Tank product chamber:
p = -1 / +3 bar,
t = -10 / +150 °C
Double wall:
p = -1 / +3,5 bar,
t = -10 / +150 °C
MATERIAL:
Parts in contact with product 1.4404/ 1.4435/ 316L , with APZ 3.1 AD 2000, Ra <0.3µm
Pharmaceutical

Sterile stirring tank with magnetic stirrer for small batch sizes

Pharmaceutical mixing and process tank pursuant to Pressure Equipment Directive 2014/68/EU based on modules A/G.
Top section as milled, flat pressure dome cover with integrated nozzles. Conical base design.

The tank is equipped with a heating/cooling jacket and insulation cover.

Equipment also includes:
  • Magnetic stirrer as a bottom agitator for a viscosity of 100 mPas
  • Metaglas sight glass
  • LED sight glass lights
  • Rupture disc
  • Product tubes
  • CIP cleaning nozzle
AREA OF APPLICATION:
Industry: Pharmaceutical, sterile production
Product: pharmaceutical formulations
SIZE:
3 l – 100 l
OPERATING DATA:
Tank product chamber:
p = -1 / +10 bar,
t = -10 / +150 °C
Double wall:
p = -1 / +3,5 bar,
t = -10 / +150 °C
MATERIAL:
Parts in contact with product 316L , with APZ 3.1 AD 2000, Ra <0.5µm
Cosmetics industry Food industry Pharmaceutical

Process tank with hinged cover

Mobile stirring tank in line with good engineering practice Consisting of 1 250l stirring tank for producing pharmaceutical formulations. Depressurised, flat surface. The flat cover is equipped with a 1/3 inlet opening and a seal. Torispherical base design. The container is supplied as a single-walled unit.

Equipment also includes:

  • Base stirrer as a magnetic stirring unit 250 mPas
  • Hinged cover with seal and locking mechanism
  • Bottom valve with angled actuator
  • CIP lance


Size:

50 l – 1.000 l

Operating information
Tank product chamber:
p = 0 bar, depressurised
t = +10 / +50 °C
Double wall:
not present

Material
Parts in contact with product available in 1.44404 or 1.4435, with APZ 3.1 AD 2000, Ra <0.3µm

Process tank with lifting system and Teflon coating for acid-based formulations

Process tank with lifting system and Teflon coating for acid-based formulations.
